2-in-1 Cabinet Door Support & Drill Guide — Your Extra Hand for Easier Installation

$39.99

SAVE Sold out

2-IN-1 CABINET DOOR SUPPORT & 10 MM DRILL GUIDE

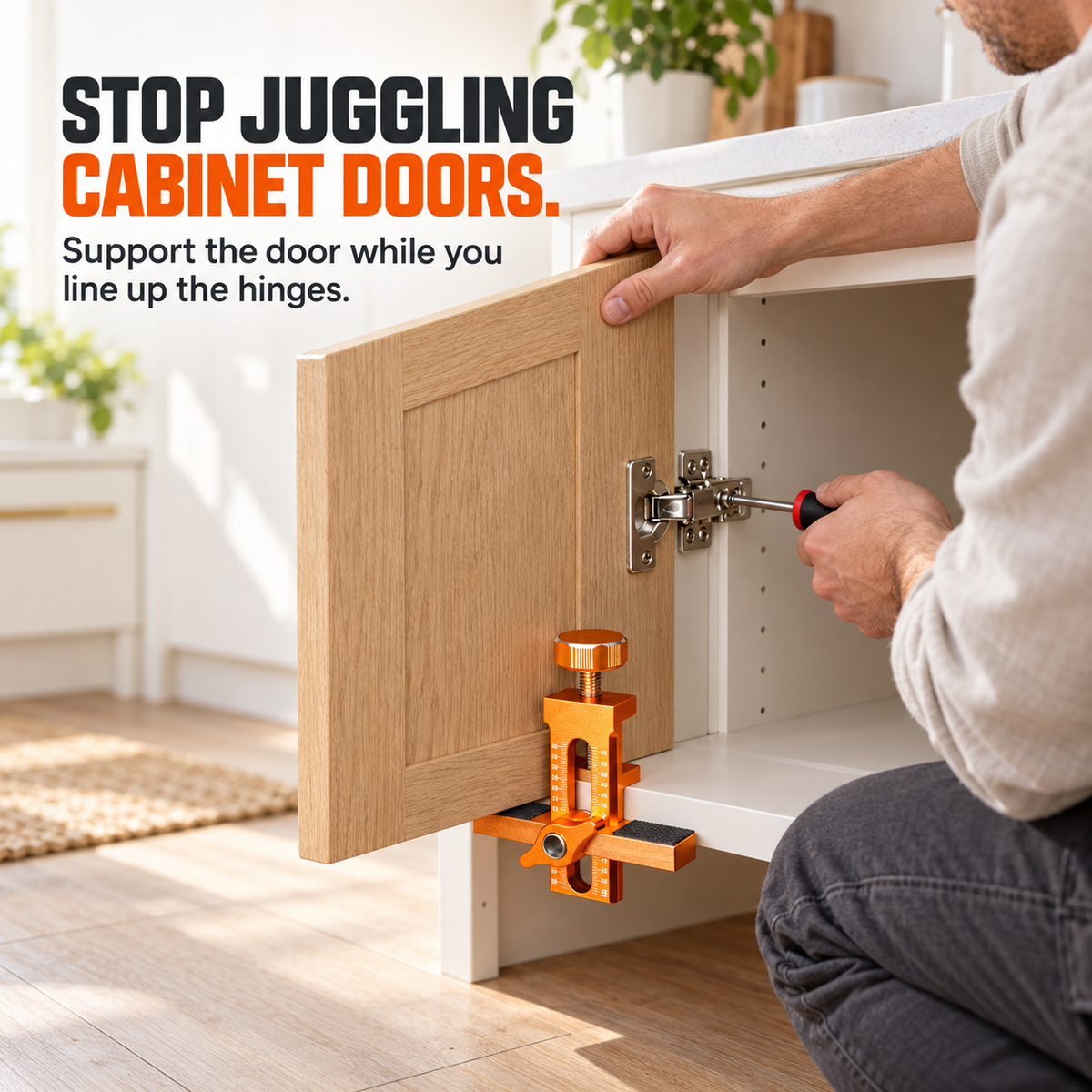

Support the door.
Focus on the fit.

Holding a door, finding its height and lining up a hinge can feel like one task too many. Give the door edge a place to rest while you work.

Check your cabinet fit ↓

01 / SET THE HEIGHT

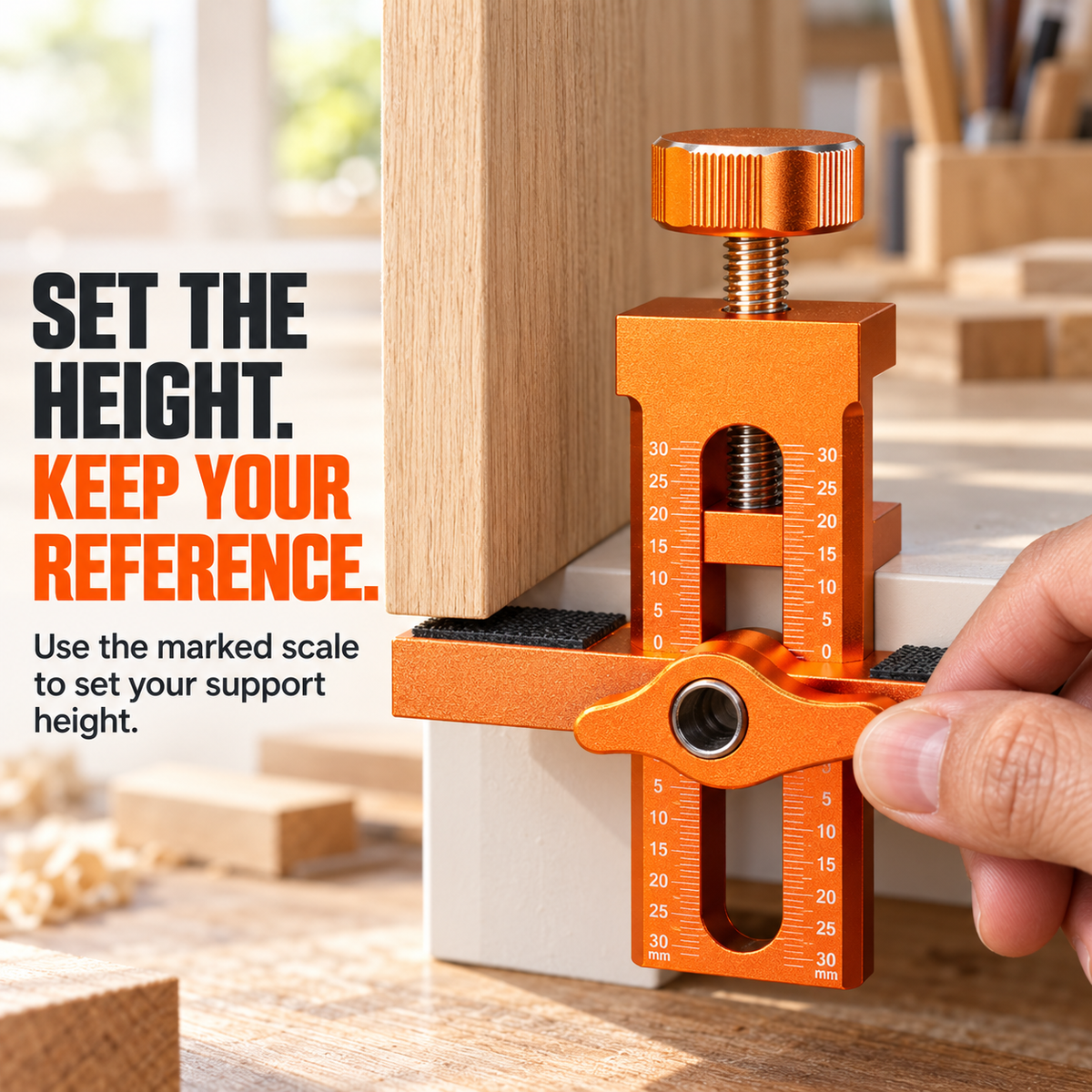

A reference you can come back to.

Use the laser-marked metric scale to set the support height. Keep your reference in view as you position the door and make adjustments.

Three steps to a supported setup.

Clamp to the base

Secure the jig to a compatible cabinet base with room beneath it.

Set the support height

Use the marked scale and secure the height adjustment.

Position the door

Rest its lower edge on the pad. Keep the door steady while aligning the hinges.

02 / REVERSIBLE POSITIONING

Change the setup.
Keep a reference.

The reversible design and two-way scale markings support upright or reversed clamping in compatible setups. Choose the orientation that matches your cabinet layout.

03 / A SECOND USE

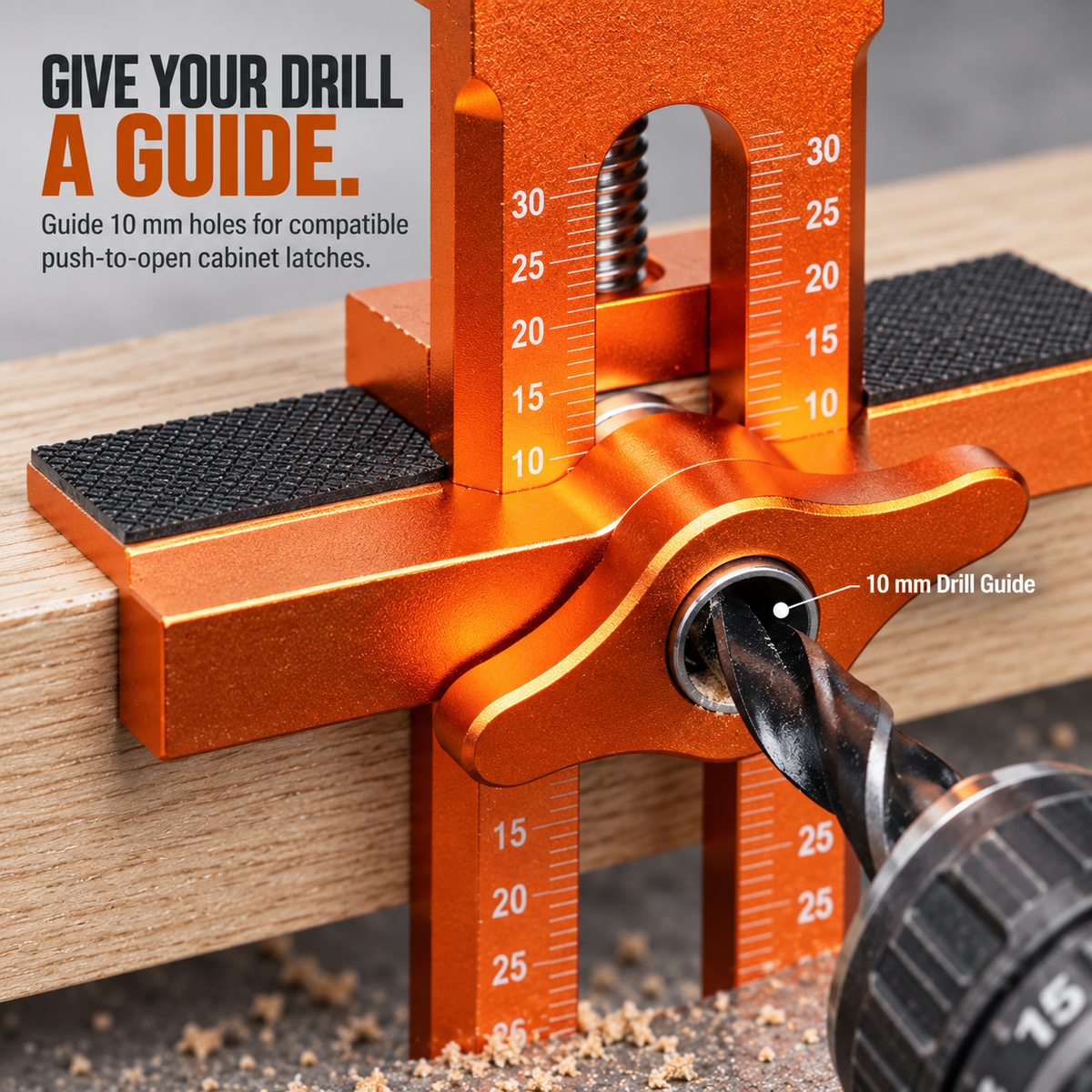

Give your drill a guide.

The central 10 mm guide helps direct drilling for compatible push-to-open cabinet latches. Match the drill bit and latch requirements before starting.

10 mm guide for compatible latch holes

04 / SEE THE MATERIAL

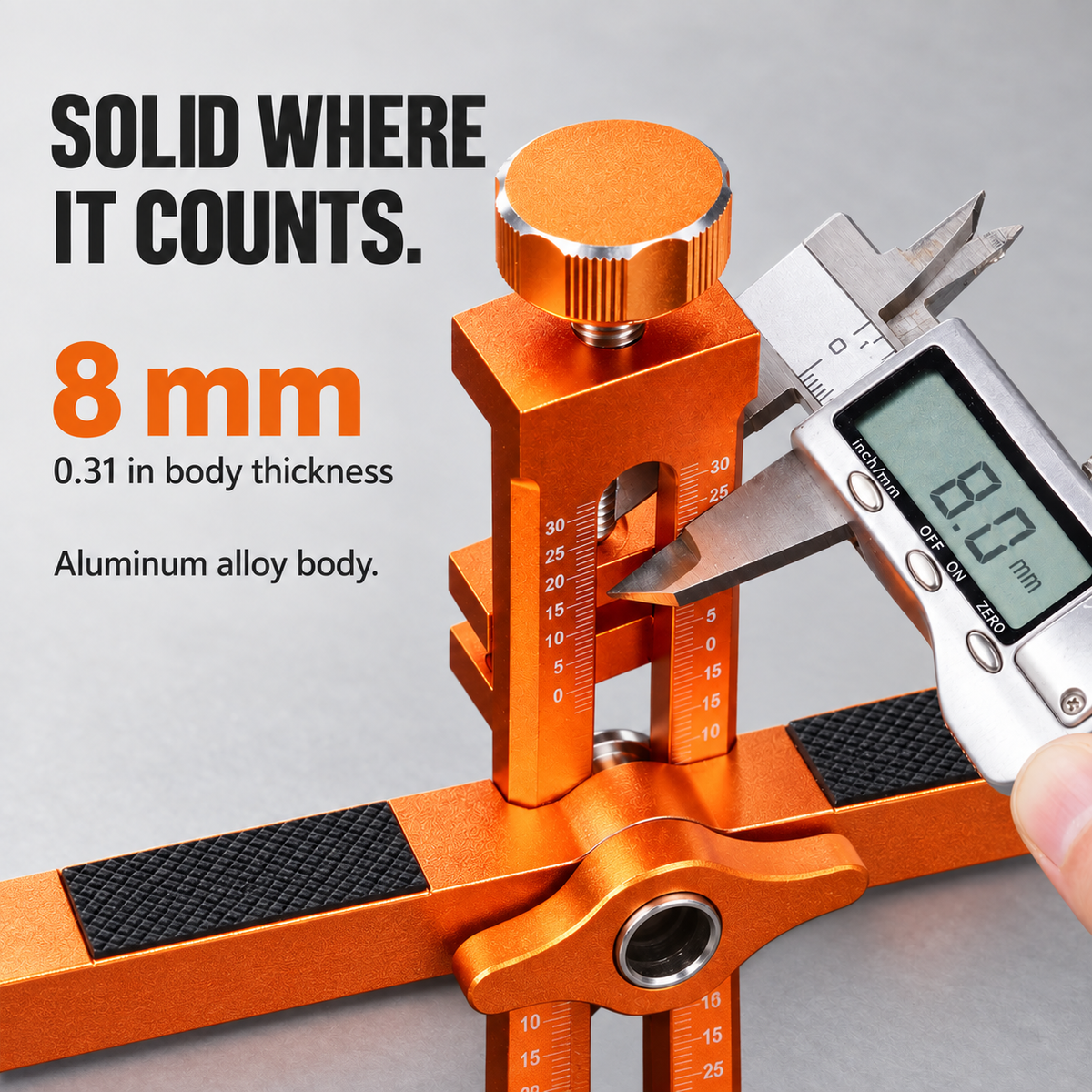

Solid where it counts.

An 8 mm aluminum alloy main body gives this compact tool a substantial structure you can see up close, from the plate edges to the adjustment hardware.

05 / MIND THE CONTACT

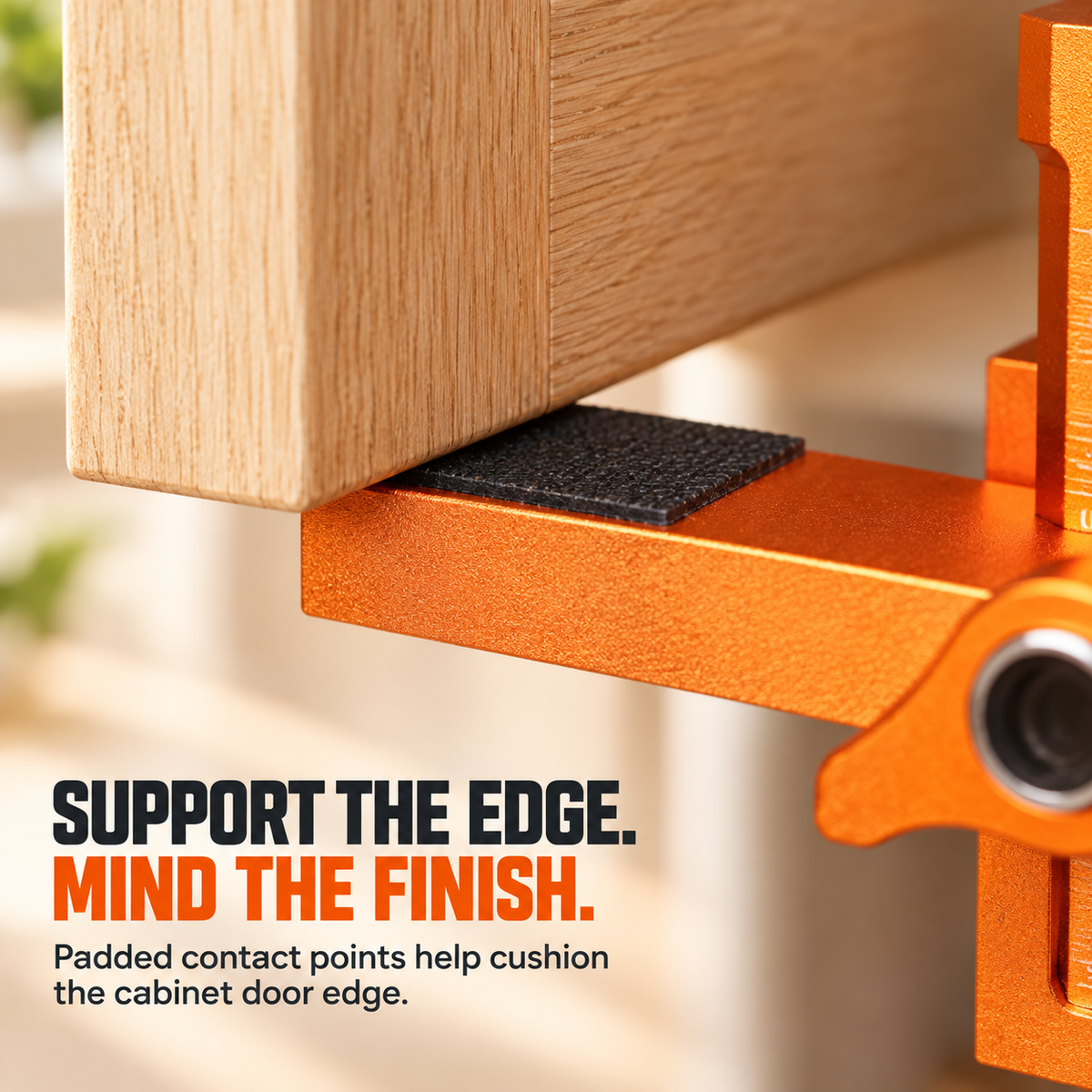

Support at the edge.

The original padded contact points sit between the support arm and the door edge. They help cushion that contact while you position the door.

06 / CHECK YOUR SETUP

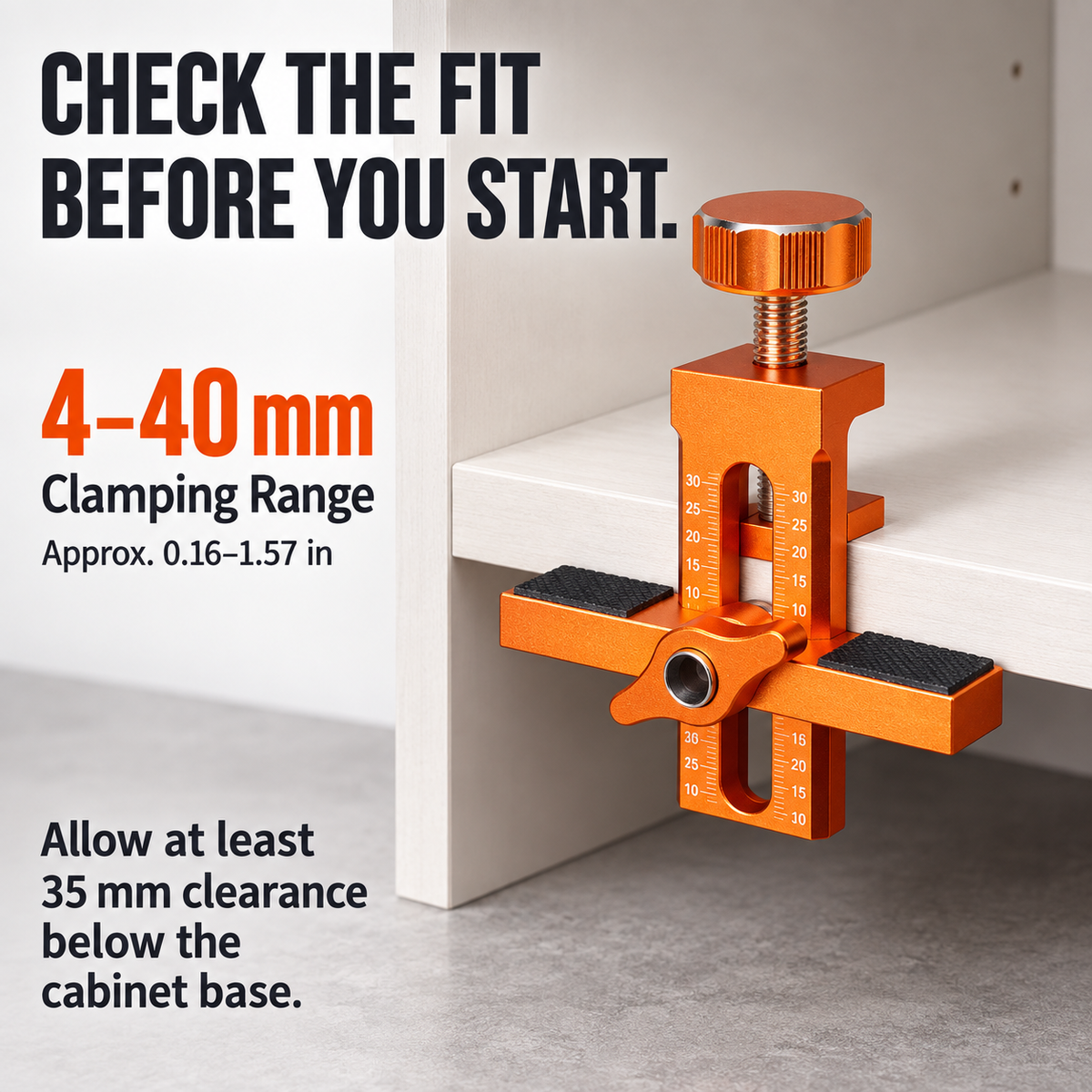

Measure first.
Plan the job.

Check the thickness of the panel you will clamp and the available space beneath the cabinet base. Your cabinet construction must allow the jig to grip securely.

Panel thickness: 4–40 mm
Approx. 0.16–1.57 in clamping range

Under-base clearance: at least 35 mm
Approx. 1.38 in for the illustrated base mounting setup

Product Highlights

Support while you align

Give the lower door edge a resting point during hinge positioning.

Adjust with a reference

Use marked metric scales when setting the support height.

Add drilling guidance

Guide compatible 10 mm push-to-open latch holes with the same jig.

Specifications

The details for planning your installation.
Product Type	Cabinet door support & latch drilling guide
Main Body Material	Aluminum alloy
Body Thickness	8 mm / approx. 0.31 in
Drill Guide Diameter	10 mm / approx. 0.39 in
Clamping Range	4–40 mm / approx. 0.16–1.57 in
Overall Height	109–145 mm / approx. 4.29–5.71 in
Support Bar Width	106 mm / approx. 4.17 in
Main Plate Width	37 mm / approx. 1.46 in
Scale	Laser-marked metric graduations
Positioning	Upright or reversed, where the cabinet layout allows
Under-Base Clearance	At least 35 mm / approx. 1.38 in for the illustrated setup

Inch values are approximate conversions. Use the metric specifications when checking tool and drill-bit compatibility.

Before You Start

Will it fit my cabinet?

The clamping range is 4–40 mm. The illustrated cabinet-base mounting setup also needs at least 35 mm of open space underneath. Check both measurements and whether the cabinet construction permits secure clamping.

Can I use it in the reversed position?

Yes. The product supports upright and reversed clamping orientations. Choose a position that allows the original clamping surfaces to contact the panel correctly and leaves room for adjustment.

What is the 10 mm guide for?

It guides holes for compatible push-to-open cabinet latches. Check the latch’s required hole diameter and the drill bit before use. It is not a 35 mm concealed-hinge cup-hole jig.

Is the scale metric or imperial?

The original marked scale is metric. The inch values listed here are approximate conversions for reference.

How does it contact the door?

The lower door edge rests on the original black contact pad above the support arm. Keep the pad and the door edge clean, and continue to steady the door while you position it.
